Re: Shed Matters 3

Post by Stanley »

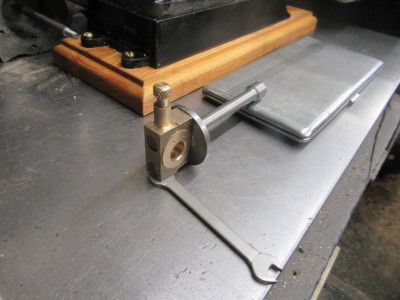

Another careful step forward. I adjusted the thickness of the Con rod foot and remarked the PCD for the two bolts. Then I drilled the foot for the bolts and filed a flat bed next to the shaft of the rod to allow the nuts room to be tightened. Then I took the brass off the crank pin and assembled it so it is ready for finish milling tomorrow and drilling for the pivot pin in the crosshead. Now I want my breakfast!
